GVF Components : VALVES

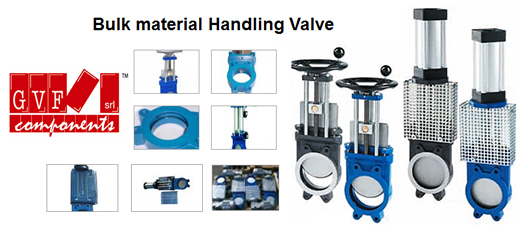

SLIDE VALVE KG

The Knife Valves type KG produced by GVF Components have been designed to intercept fluids such as powders, granulates, liquids under pressure or paste. The knife gates are especially used to charge and/or discharge silos, hoppers, screw conveyors and are suitable for paper, tanning, purification and all Bulk Handling fields such as chemical, food industries, ceramics. Thanks to the internal O-Ring it is possible to use the KG valve when it is important to maintain some pressure values.
FEATURES
- Reduced overall dimensions and strong construction
- Compact shape
- Blade (knife) made of stainless-steel
- Flanges according with UNI2277-PN10
- Manual-type fitted with screw not exceeding the valve dimension
Available: Manually / Pneumatically / Electrically actuated
Stainless-steel body available on request

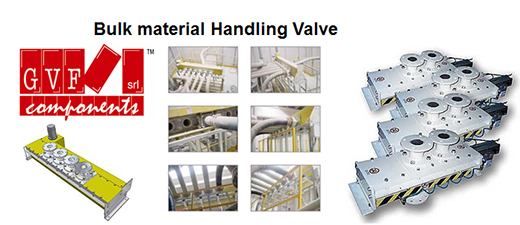

MULTI-WAYS DIVERTER VALVE DS

The multi-ways Diverter Valve DS has been designed to  charge up to 10 arrival points using one only valve (sizes from DN40 to DN 100).
This type of valves can be pneumatically or electrically operated. Generally, the diverter valve DS is used in a pneumatic conveying system or for charging a battery of silos. The "core" of the valve is the inlet pipe which moves thourgh the "bed" up to reach the selected outlet, i.e. the chosen silo. The valve has an inflatable seal specifically designed to make the valve airtight up to 4 Bar.
Range: da DN 50 a DN 150

Advantages of the DS valve are

- unrestricted product flow (no loss of charge, no mechanical wearing parts), no bends, short and compact shape and dimensions, no need of using 3 or 4 valves to charge a group of silos.

- maintenance on one only valve.
